The AMP3116 from Exodus is a hybrid Gallium Arsenide (GaAs), solid state power amplifier (SSPA) module. This module has an output power of 10W with a gain of 40dB over the entire frequency range from 26 to 32 GHz. The AMP3116 has a compact design of only 110x130x22mm and can be used in a wide…
DetailsCom-Power model CGO-501 Comb Generator is a broadband EMC signal source for a fast EMC test. It generates a signal up to 1000MHz in 1MHz steps EMC labs regularly calibrate their instrumentation, accessories and test sites for radiated emissions. These procedures are extensive and time consuming. However, calibration does not prevent equipment from malfunctioning between…
DetailsMeet the brand new innovative Ranatec RI 4199 USB 3.2 feed-thru filter. The panel-mountable filter has USB-C connectors on both sides and is bi-directional. The typical attenuation value is 60 dB at 2.4; 5.8 and 7.125GHz. The RI 4199 offers SuperSpeed 20 Gbps data transfer, can handle a decent 100W of power, making it the…
DetailsLeadertech produces thermal interface material in sheets, also based on graphite. Graphite is used for its extremely good thermal conductivity, but only on surfaces that don’t need to be electrically isolated. The vertical conductivity is a decent 5W/m-K while the horizontal thermal conductivity is extremely high at 400W/m-K. Therefore, thermally conductive graphite can be used…
DetailsWith the Power Analyzer DPA3011, Elab-Tools offers a practical and universal measuring instrument for electronics engineers who develop equipment that is connected to the mains, such as inverters, machines and power supplies. The Power Analyzer is used to measure the power factor, harmonics and distortion during dynamic current behavior. The DPA3011 records 8 signal parameters:…
DetailsThe Shieldex EMI tents are made of self-produced yarns and textiles. This base material can be optimized to the desired radiation attenuation and frequency range. A tent is made up of several layers for the best measurement result, but also to guarantee functionality and thus create a robust, tear-resistant and practical workable solution. With these…
DetailsElectronic equipment must have a certain immunity to electrostatic discharge, tested according to the international standard IEC 61000-4-2. The German equipment manufacturer Schlöder has a series of programmable ESD simulators guns, which can be used both on battery and mains: SESD 216: 16.5kV air and 10kV contact discharge SESD 230: 30kV air and contact discharge…
DetailsDisplay filters for medical devices have challenging characteristics, including EMC shielding, chemical resistance, as well as maximum readability. PSC has various solutions for this. Polycarbonate with indium-tin oxide coating: robust solution, small color difference possible, almost no noticeable loss in transparency Optical-grade acrylic with a cast steel or copper mesh: best optical properties, highest EMC…

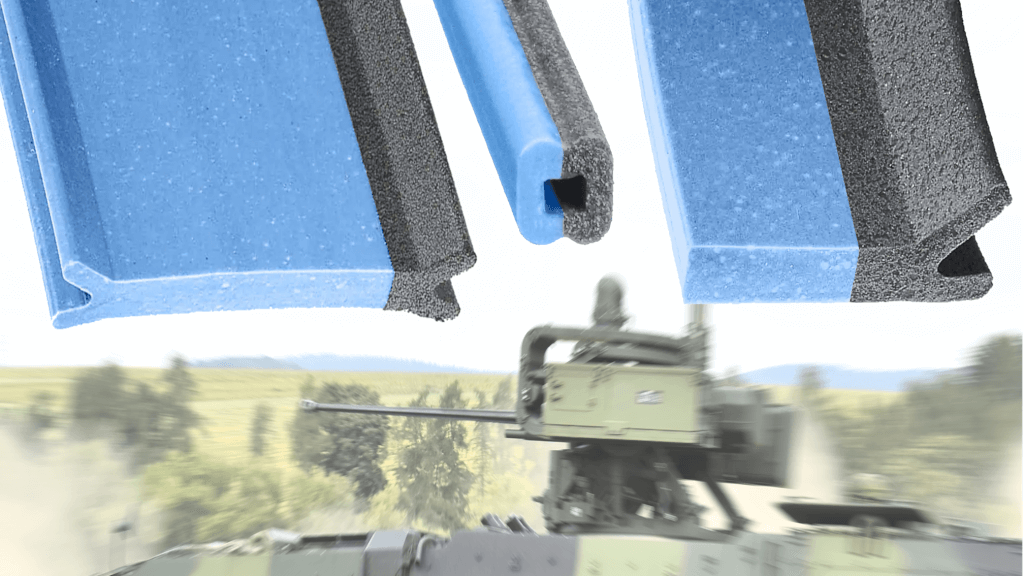

DetailsParker Chomerics has a range of seals made of conductive elastomers with dual functionality. Where the standard seals provide either an environmental seal against moisture, dust and dirt or provide an electrically conductive seal, Parker Chomerics has accommodated both functions in one seal. These flexible seals are used for opening doors, hatches etc. The field…
DetailsThe FFT 3000 family of digital EMI receivers from AFJ Instruments support fast and accurate measurements according to CISPR-16-1-1. In conjunction with this, AFJ also offers calibrated antennas for these radiative emission measurements. FFT 3010 The FFT 3010 is the basic version with a measuring range 9kHz to 300MHz, equipped with FFT scan mode. Suited…
